GlobalTime Analogue 15″ PoE and WIFI Clocks

Available IMMEDIATELY, no shipping delays from the supplier as with OTHERS. Stylish design, quality finish, reliable performance.

These clocks are ONLY available in 15″ / 381 mm, however typically at the same price of 12″ / 304.8 mm dial sizes provided by all OTHER suppliers.

A unique feature common to BOTH the WIFI and PoE clocks is that they operate WITH and WITHOUT a second hand for those wanting just HOUR and MINUTE hands (no second hand), this feature is often sought but unavalable with all other suppliers.

These clocks have NO LOGO making them free of unwanted advertising.





GlobalTime GTD360-BP PoE clock

From $620.00 ex GST

(Available in Black Plastic AND Aluminium Bezel)















GlobalTime GTD361-SA WIFI clock

From $620.00 ex GST

(Available in Black Plastic AND Aluminium Bezel)







**  Clock pricing represents worst case cost senario where single clock purchase and import offers least cost effective options – SIGNIFICANT improved pricing with QUANTITY.

GlobalTime GTD360-BP PoE clock brochure (available here)

GlobalTime GTD361-BP WIFI clock brochure (available here)

LeoNTP Network Master Clock / Time Server 1200

(Download the Brochure)

– 12 Month Warranty (no warranty extension options available)
– PoE or USB Powered.
– Lightening arrestor optional
– Temperature tolerance -40 > 85’c. LED Screen / OLED -20’c.
– With GPS synchronised clock source, 24 hours before stratum 16
declaration on lost satellite lock.
– Providing a cost effective but highly accurate and extremely high performing
networked time server
– Stratum 1 Master Clock

  • 1 PPS Coax Output

Options (not included in pricing) –

(1) External GPS Antenna MRF006 28dB Gain (marine grade) for LeoNTP
Server – $135.00 ex GST
– 10 metres RG58 Antenna cable with Male SMA connector.

(2) External GPS Antenna MRF006 28dB Gain (marine grade) for LeoNTP
Server – $231.00 ex GST
– 30 metres RG58 Antenna cable with Male SMA connector, external antenna and 10 metres cable with a further 20 metre SMA Male to SMA Female cable

(2) 1RU Steel Black Powder Coat Rackmount (suits ONE, TWO OR THREE LeoNTP) – $ 196 ex GST

$1,425.00 ex GST each

















Figure 1 Functional Diagram

(Download the Brochure)

The SEL-2488 raises the bar for satellite-synchronised
clocks by providing higher levels of accuracy, flexibility,
dependability, and ease of use, all while providing
advanced capabilities that make it especially well suited
for critical infrastructure applications.
Standard Features
➤ Average accuracy of ±40 ns to UTC, peak accuracy
of ±100 ns to UTC for demodulated IRIG-B and
pulse outputs
➤ Time sources used: GPS, GLONASS for satellite
signal verification
➤ Typical NTP time-stamp accuracy <100 μs
➤ Peak PTP time-stamp accuracy of ±100 ns to UTC
➤ Peak accuracy of ±1 μs to UTC for modulated
IRIG-B
➤ Standard TCXO holdover with 36 μs average timing
error after 24 hours at constant temperature

➤ Optional OCXO holdover with 5 μs average timing
error after 24 hours at constant temperature
➤ Eight rear BNC ports for demodulated IRIG-B,
PPS, or kPPS, and as many as four ports for modulated
IRIG-B
➤ Four Ethernet ports can serve NTPv4 and PTP to
four independent networks
➤ One Form A solid-state contact output can provide
a single contact closure or a repeating contact closure
of configurable closure duration and period
➤ One Form C mechanical alarm contact notifies
users of a major or minor event
➤ One standard power supply: 24–48 Vdc or
125–250 Vdc or Vac, optional second supply
➤ Satellite signal verification with SEL-9524B 
GPS/GLONASS GNSS Antenna
➤ LCD multi-information display plus LEDs for status
➤ HTTPS Web interface with SkyView, support for
DHCP, LDAP, Syslog, SNMP read and traps, and
ACSELERATOR QuickSet® SEL-5030 Software
➤ Standard SEL 10-year warranty

Supplied With Complete Antenna Installation Kit: This includes –

➤ GPS/GLONASS Antenna (SEL-9524B)

➤ 15.15 Metres / 50ft LMR-400 cable (SEL-C961-050)

➤ Gas Tube Coaxial Surge Protector and Mounting Kit (915900139)

➤ 7.58 Metres /25ft LMR-400 cable (SELC961-025)

➤ Antenna Pipe-Mounting Kit (915900043)

PLEASE Call for pricing

** 2 (WEEKS) weeks lead time for dispatch from SEL US as at THURSDAY 4th APRIL 2024

Time Machines – Digital PoE Clocks

2.5″ High 6 Digit PoE From $863.00 ex GST

4″ High 6 Digit PoE From $1167.00 ex GST

**Pricing in Australian dollars inclusive of international freight, taxes and duties (ALL PRODUCTS are imported PRICING is for QTY ONE, this improves notably with quantity). Pricing current as at 25/5/26.

Time Machines – WIFI AC Powered Clocks

2.5″ High 6 Digit WIFI From $892.00 ex GST

4″ High 6 Digit WIFI From $1196.00 ex GST

**Pricing in Australian dollars inclusive of international freight, taxes and duties (ALL PRODUCTS are imported PRICING is for QTY ONE, this improves notably with quantity). Pricing current as at 25/5/26.

PoE Clocks (Power over Ethernet) –

Searching for a clock that will provide you with correct time down to the second? TimeMachines’ PoE digital clocks will display the precise time once it’s synced up with your network’s time source, be it internet based or local. Using only an Ethernet cable to synchronize and power the clock, you’re able to easily manipulate and control all of your TimeMachines clocks with a single computer on your network and your favorite web browser.

WiFi Clocks –

It can be vital to make sure your workers operate on the same, accurate time throughout your workspace. Wi-Fi clocks by TimeMachines are the best solution for presenting synchronous, precise time across your building. These clocks use Wi-Fi to synchronize their time which means they all display the same time, all the time.

Our Wi-Fi clocks are easy to set up: all you have to do is point the clock at your network time server and sync up. You can also run an Ethernet cable to it as well. Powered by an included 12VDC power supply, you’ll never have to worry about employees operating on the wrong time.

Time Machines digital PoE and WIFI also feature –

  • Available RGB LED colours are MULTI Colour selectable, the LED Display is selectable from any choice of RED, GREEN, BLUE, YELLOW, MAGENTA, CYAN, WHITE colours
  • Web / browser configuration
  • Built in relay to execute an external sounder at scheduled times
  • 18 guage powder coated metal case
  • WIDER digits in the 4″ high digit clocks at 60mm compared to 40 mm wide in other vendors clocks, this enhances distance viewing.
  • Hours, Minutes and Seconds (where a 6 digit clock) are all the SAME size height.

TM1000A NTP Server                                    TM2000B NTP/PTP Server

From $1,336.00 ex GST             From $1,795.00 ex GST

What’s the difference you ask ?

Time Machine TM1000A – (Download the Brochure)

The TimeMachines TM1000A GPS NTP Network Time Server is a simple to use GPS based time server that supplies accurate time for all computers and time keeping devices on the network. By placing a time server on the local network, (S)NTP time packets are provided without requiring systems to go to the Internet to get a Stratum 1 time synchronization. The TM1000A system uses an active GPS antenna to maintain the current time as broadcast by GPS satellites.

The built in high sensitivity GPS receiver is able to lock multiple satellites from within multiple buildings or from a window location, eliminating the requirement that an outdoor antenna be installed

Time Machine TM2000B – (Download the Brochure)

The TimeMachines TM2000B GPS NTP+PTP Network Time Server represents a major step forward in capabilities at a breakthrough price point. It will supply accurate time for all computers and time keeping devices on the network. Supporting both Precision Time Protocol (PTP) and Network Time Protocol (NTP), a Stratum 1 time source can now be available on the local network with no need for an internet connection.

The TM2000B system uses an active GPS antenna to maintain the current time as broadcast by United States GPS satellites planet wide. In addition, a high stability OCXO reference clock is included that allows the unit to serve time if GPS lock is lost for periods of time.

DUAL and SINGLE 1RU Rack Mounts are available –

SINGLE Rack mount From $116.00 ex GST – DUAL Rack mount From $145.00 ex GST

TM2000B PTP and NTP at a breakthrough price:

Until now, a PTP capable time server started with at $7000 and went up from there. The TM2000B provides both Multicast and Unicast PTP protocols to up to 50+ devices. Its high precision OCXO reference clock allows for several hours of GPS signal loss. Holdover time: PTP: 2+ hrs NTP: 24+ hrs or better than 0.1 seconds over a year.

** Outdoor antennas are available (Brochure here) from TimeMachines including custom length cables and accessories, maximum cable extension is limited to 100 feet / 30 metres without requirement to update to a powered external GPS antenna/receiver.

RGB Technology is the leading Polish manufacturer of LED displays. The base of the company and its production plant are situated in Tymień. The company was founded in 2005 as a response to the market demand connected with the development of LED technology for outdoor applications. RGB Technology employs more than 50 people.

These displays are UNIQUE in that by virtue of their IP66 rating they are perfectly suited to outdoor (full exposure to weather), wash down areas etc. NO waterproof enclosures are required.

The dot matrix display while moving away from the common solid 7 segment LED numbers, are perfectly visible in straight sunlight to absolute darkness due to the automatic light sensor selecting a perfect level of brightness allowing absolute visibility at all times.

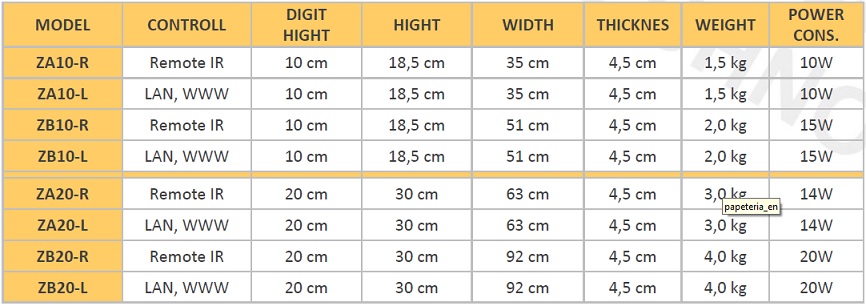

ZA10-L (4″/100mm 4 RED digit) From $847.00 ex GST

ZB10-L (4″/100mm 6 RED digit) From $1,033.00 ex GST

ZA20-L (8″/200mm 4 RED digit) From $1,406.00 ex GST

ZB20-L (8″/200mm 6 RED digit) From $1,675.00 ex GST

** Includes international freight, based on a SINGLE clock import, prices improve with quantity



EXECUTIVE RELAY

Clocks in this series have a built-in executive relay which signalise max 30 alarms. The duration of the alarm may be set individually – from 1 second up to 59 seconds.

Purposes:
– turn on the industrial buzzer signaling such interruptions and changes in the workplace
– turn on school bell
– give a time signal to another device / system



 AUTOMATIC TIME SYNCHRONISATION

For the purposes where the accuracy of indicated time is critical parameter, the automatic time synchronisation is used – available in two options:



Satellite GPS receiver (for model with suffix „–R” or „–L”)
– provide the synchronisation based on GPS satellite signals
– for proper operation need placement which allow for the “visibility” of the sky
– built-in LED diode indicating receiving signal







Synchronisation via Internet –NTP time servers (models with suffix „–L”)
– provide time synchronisation with dedicated NTP servers (free servers available)
– for proper operation the permanent connection with internet is required
– simultaneous support for ten different time servers ensures correct synchronization of clocks, even in case of loosing communication with most servers
– switching between time servers is automatic after detection of inaccuracies in the action or failure.

Any clock can be a central clock (clock master) and provide a time source for other clocks in the network as a SNTP server. The Central clock may acquire time from the GPS receiver, other public NTP server or your internal clock. This allows for a closed GPS based master/slave time system.

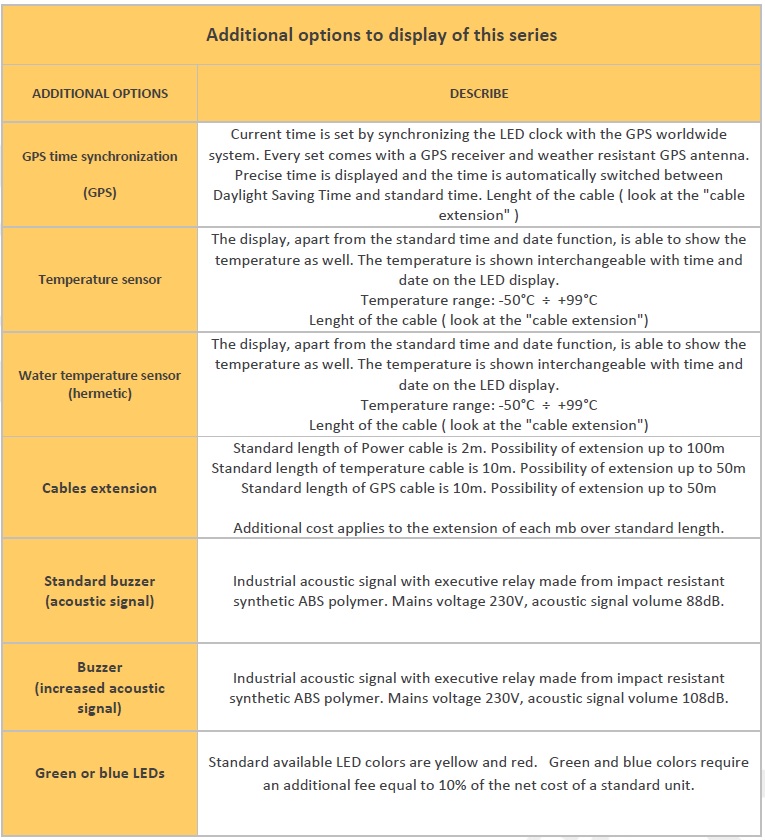

Clock Options

Primex

With more than 1 million devices installed worldwide, Primex is a leading provider of time synchronisation solutions designed to help facility managers improve productivity, efficiency and accountability.  The company’s newest line of Smart-Sync™ analogue and digital clocks leverages Bluetooth® wireless technology to keep organisations across a wide range of industries running on time, all the time.

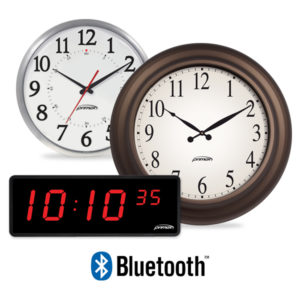

Primex Introduces New Range of Smart-Sync™ Bluetooth® Clocks

Smart-Sync™ is a self-organizing, self-forming and self-healing time synchronization clock system from Primex that harnesses the ease, flexibility and low power needs of Bluetooth® wireless technology.

One paired, clocks wake up once daily and dynamically find the strongest path back to the Smart-Sync™ Bridge, resulting in a robust Bluetooth® network of clock-to-clock and clock-to-bridge connections.  The bridge then pushes NTP-acquired time information across the network and all clocks automatically synchronise.

Clocks can be analog, digital or a combination of the two, and battery- and AC-powered options are available.  The system is highly scalable, as well; each bridge can accommodate up to 250 clocks.

Primex PoE Clocks

It’s never been easier to synchronise the time throughout your facility. OneVue Clocks are delivered pre-configured, ready to quickly access your existing network. Simply take the clocks out of the box, connect to PoE power, and hang them on the wall. The clocks will immediately access your network and synchronise perfectly to keep your organisation running on time, even through power outages or Daylight Saving Time shifts

How Primex Bluetooth works –

• Smart-Sync clocks ‘wake up’ once daily
• Clocks synchronise time via Smart-Sync Bridge this is set to refer to your preferred NTP servers via OneVue
• Clocks form a network based on the strongest signal to another clock or the Smart-Sync Bridge
• If one clock fails, other clocks will ‘find their way home’ to the strongest signal
• Smart-Sync Bridge reports clock status to OneVue and reports once daily to those specified
• OneVue accessible is via PC or mobile devices (https://console.primexonevue.com/#/login)

** Clocks require 2 x D cell batteries (Duracell Coppertop are reccomended and supplied) – approximate THREE year battery life, nominal cost to replace.

** A clever security device ‘locks’ clocks to the wall. They can only be removed with a specific knowledge of the required process.

** Bluetooth Bridge numbers vary based on the clock distribution. For example in a single floor senario as long as clocks AND one bridge are within 30 metres of each other (Bluetooth V4 has a theoretical range of 60 metres), ONLY one bridge will be required. For multiple buildings or floors ONE bridge per area is reccommended. ONE network point ONLY per bluetooth bridge.

** VERY simple deployment process, no requirement for power points or network points



From $Ask… ex GST

** Based in Traditional Series (Black Plastic Bezel)



From $Ask… ex GST

** Based in Traditional Series (Black Plastic Bezel)

From $Ask… ex GST



The TimeMachines GPS NTP/PTP Network Time Server represents a major step forward in capabilities at a breakthrough price point. It will supply accurate time for all computers and time keeping devices on the network. Supporting both Precision Time Protocol (PTP) and Network Time Protocol (NTP), a Stratum 1 time source can now be available on the local network with no need for an internet connection. The system uses an active GPS antenna to maintain the current time as broadcast by GPS satellites planet wide. In addition, a high stability OCXO reference clock is included that allows the unit to serve time if GPS lock is lost for periods of time. The unit is small and can be placed anywhere within the network layout. The built in high sensitivity GPS receiver is able to lock multiple satellites from within many buildings or from a window location, removing the requirement that outdoor antennas be installed in many applications.

PTP and NTP at a breakthrough price:
Until now, a PTP capable time server started with at $7000 and went up from there. The TM2000B provides both Multicast and Unicast PTP protocols to up to 50+ devices. Its high precision reference clock allows for several hours of GPS signal loss.

Time Server Features and Specifications:

• Receive time information from GPS satellites anywhere on the surface of the earth
• RFC1119/1305 NTP Protocol to serve time (Network Time Protocol)
• RFC1769/2030/4330 SNTP Protocol (Simple Network Time Protocol)
• IEEE 1588 2002/2008 PTP Protocol
• Server Time Level: Stratum 1
• NTP Server Time Precision: better than 1mS + network jitter
• PTP Server Time Precision: better than 3uS + network jitter
• Holdover time: PTP: 2+ hrs NTP: 24+ hrs or better than 0.1 seconds over a year.
• 10M/100M adaptive network interface
• Unit is capable of serving 135+ NTP synchronisations per second. That provides support for over 120,000+ devices updating every 15 minutes on the network.
• Active Patch GPS antenna included. Magnetic base. Cable: RG174, 5m length, SMA male.
• Power Requirements: 5W at startup and 2.5W continuous at 12V DC.
• Environmental Requirements: Commercial temperature range, 0-70C, 95% humidity non-condensing. Altitude -304m to 18,000m.
• Networking: Static or DHCP IPv4 addressing. Standard browser interface for setup.
• Serial port supports both RS-232C levels and TTL (+3.3V) outputting standard NMEA information strings, as well as the 1PPS signal at TTL levels. TTL signals can be turned off via software control.
• Indications: Power, GPS Signal Lock, and 1PPS indications
• Rear Connections: Power, Cat5 Ethernet, Serial, dual USB, and GPS antenna via SMA connection. Supports +3.3V and 5V active GPS antennas with internal jumper setting.
• Mechanical Dimensions: 127mm x 107mm x 33mm

From (AUD) $1,795ex GST



The TM1000A Time Machines GPS NTP Network Time Server is a simple to use GPS based time server that will supply accurate time for all computers and time keeping devices on the network. By placing a time server on the local network, (S)NTP time packets are provided without requiring systems to go to the Internet to get a Stratum 1 time synchronisation. The system uses an active GPS antenna to maintain the current time as broadcast by GPS satellites. With this device installed on your local network, there is no longer the worry that if the Internet connection goes down, time synchronisation is lost across the network..  Supports IPv4 and IPv6.

Time Server Features and Specifications:

• Receive time information from GPS satellites anywhere on the surface of the earth
• RFC1119/1305 NTP Protocol to serve time (Network Time Protocol)
• RFC1769/2030/4330 SNTP Protocol (Simple Network Time Protocol)
• Server Time Level: Stratum 1
• Server Time Precision: better than 5mS + network jitter.
• All networked computing platforms support time synchronisation either natively or with add on drivers including: Windows, Macintosh, and Linux. Many other devices can access the device as well including VoIP phones and digital clocks.
• 10M/100M adaptive network interface
• Unit is capable of serving 135+ synchronisations per second. That provides support for over 120,000+ devices updating every 15 minutes on the network.
• Active Patch GPS antenna included. Magnetic base with 5 metres of cable.
• Supports IPv4 and IPv6
• Power Requirements: less than 4 Watts continuous.
• Environmental Requirements: Commercial temperature range, 0-70C, 95% humidity non-condensing. Altitude -304m to 18,000m.
• Networking: Static or DHCP IPv4 addressing. Standard browser interface for setup.
• Serial port supports both RS-232C levels and TTL (+3.3V) outputting standard NMEA information strings, as well as the 1PPS signal at TTL levels. TTL signals can be turned off via software
control.
• Indications: Power, GPS Signal Lock, and 1PPS indications
• Rear Connections: Power, Cat5 Ethernet, Serial, and GPS antenna via SMA connection. Supports +3.3V and 5V active GPS antennas with internal jumper setting.
• Mechanical Dimensions: 127mm. x 107mm. x 33mm.

From (AUD) – $1,336.00 ex GST

tm1000a-gps-antenna

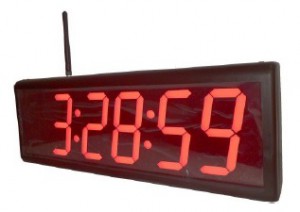

This clock is BOTH WIFI and PoE and has 100mm high digits and is visible at 30 metres, warranty is 12 months with MTBF of 50,000 hours or in excess of 5 years. Clock configuration is set by a small windows executable either individually or in bulk.

6 digits allows for hours minutes and seconds with a choice of 3″ OR 4″ seconds, hours and minutes are 100mm or 4″ high.

Digit colours available RED, GREEN, AMBER, BLUE

Time is automatically set by SNTP (Simple Network Time Protocol)
Power over Ethernet (POE)- utilizes the same technology as IP phones (AC Adapter available)
DHCP or Static IP addressing
Display time in 12 or 24 hr format
4 settings for LED brightness (this also provides for reduced power consumption) as well as scheduled settings for display power off/on
Firmware update via management software.
International time zones, daylight saving time, time server configuration available
Certification: CE / FCC /RoHS
GTD368-6DR3PoE technology describes a system to pass electrical power safely, along with data, on the Ethernet cabling. Given a single ethernet cable, a PoE switch provides both data and power, thus eliminating the need for a nearby power outlet.

Dimensions – 427mm × 157mm × 60mm (SINGLE sided), 427mm × 157mm × 80mm (DOUBLE sided)

Weight – 0.9kg Single Sided, 1.55kg Double SidedGTD368-6SR4W

Price (AUD) FROM $690.00 Ex GST Single Sided 3″ or 4″ seconds

Price (AUD) FROM $790.00 Ex GST DOUBLE Sided 3″ or 4″ seconds
